The Deckma OMD 24 is a 15 ppm bilge alarm that monitors the oil content in the water discharged from ships. It uses a measuring cell that consists of a sample glass tube, a light source and a photodetector. The measuring cell needs to be cleaned regularly to ensure accurate readings and prevent damage. The default oil content monitor for all oily water separators from RWO GmbH is the OMD by Deckma. This article lists the part numbers for RWO's products including for the OMD.
Here are the steps to clean the measuring cell manually or mechanically, depending on the level of contamination. The recommendations follow a progressive order of intensity.
Manual Cleaning
- Stop any water flow to the OMD 24.
- Unscrew the cell cap, MCU or auto-clean (*not all united are equipped with MCU or auto-clean) from the measuring cell and remove it.
- Use the cell cleaning brush (part number: TOIESP313523) from the service kit OMD 24/2008 (part number: SPSVIE318306) to clean the sample glass tube. Wet the brush and move it up and down through the tube several times.

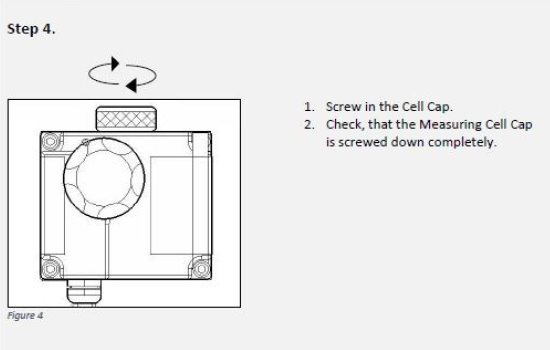

- Screw back the cell cap, MCU or autoclean and make sure it is tight.
- Switch the clean water valve to fresh water and let it flow through the instrument for a few minutes.
Mechanical Cleaning
- If the manual cleaning is not enough, you can use a powered screwdriver to assist with the cleaning process.
- Cut the upper part of the cell cleaning brush and insert the wire stem into a screwdriver. Fix it securely.
- Use the screwdriver to rotate the cell cleaning brush slowly in the sample glass tube for a few minutes. Flush with clean water and re-test.
- If there is still contamination, you can use a sample tube cleaner from the service kit. Apply it to the cell cleaning brush and add water. Repeat the cleaning process with the screwdriver.
Cleaning of Iron Oxide and Calcification
- If there is iron oxide or calcification in the measuring cell, you can use the special cleaning agent available in the service kit OMD 24/2008. In case that is unavailable, you may use citric acid or vinegar.
- Mix the cleaning agent with water in a ratio of 1:10 and fill it into a container.
- Disconnect the sample inlet hose from the OMD 24 and connect it to the container with the cleaning solution.
- Switch on the instrument and let it run for about 15 minutes. The solution will dissolve the iron oxide or calcification in the measuring cell.
- Switch off the instrument and reconnect the sample inlet hose to the OMD 24.
- Flush with clean water for at least 10 minutes.
The manufacturer advises keeping the service kit OMD 24/2008 on the vessel. It can help fix errors in the measuring cell readings that may occur due to sample tube contamination. Inside this kit, it consist of:
- 1 pc protective carrying case
- 3 pcs of cell brush
- 1 pc of desiccator cartridge (IEGUGU351636)
- 3 set o-ring OMD 24/2008 (SEKIED317244)
- 1 pc Citric Acid 50ml
- 1 pc Sample cleaner 75ml
We hope this article has answered your questions about the design change of the OWS adsorber cartridges. If you have any further inquiries, please feel free to contact us. We are always happy to assist you with your oily water separator needs.
